Editor setup: VS Code

The Sneferu extension for Visual Studio Code knows the language: it completes hk-* tags, props, filters, settings and translation keys, shows the tag reference on hover, runs the Sneferu compiler as you type, flags problems a reviewer would catch, formats with the Sneferu Prettier plugin and shows a live preview of the theme beside the editor. It includes the CLI, so you do not need Node.js or npm install to use it.

bashCopy

code --install-extension sneferu-0.1.0.vsix

VS Code

CompletionHoverDiagnosticsPreview

arcade/sections/arcade-products.sneferu

Install

The extension is published by Hekana as hekana.sneferu.

From the .vsix file (now)

From the Marketplace (soon)

Once the extension is listed, search for Sneferu in the Extensions view, or run code --install-extension hekana.sneferu. Editors that use Open VSX (VSCodium, Cursor, Windsurf, Gitpod) will find it there under the same name. An installed .vsix updates from the Marketplace like any other extension.

If you followed Format your theme and mapped *.sneferu to html in .vscode/settings.json, remove that mapping: the extension registers the sneferu language and formats it itself. Prettier and .prettierrc keep working for the CLI and for CI.

Language support

• Highlighting for HTML, hk-* tags, {{ }}, {% %} and the JSON inside <hk-schema>.
• Ctrl+/ (Cmd+/ on macOS) toggles <!-- --> comments. {{, {%, quotes and brackets close themselves, and typing > after <hk-stack … adds </hk-stack>.
• Renaming an opening tag renames its closing tag.
• Snippets: type section, section-blocks, schema, setting, template-schema, if, ifelse, for, blocks, render, t, product-grid, image or layout and press Tab.

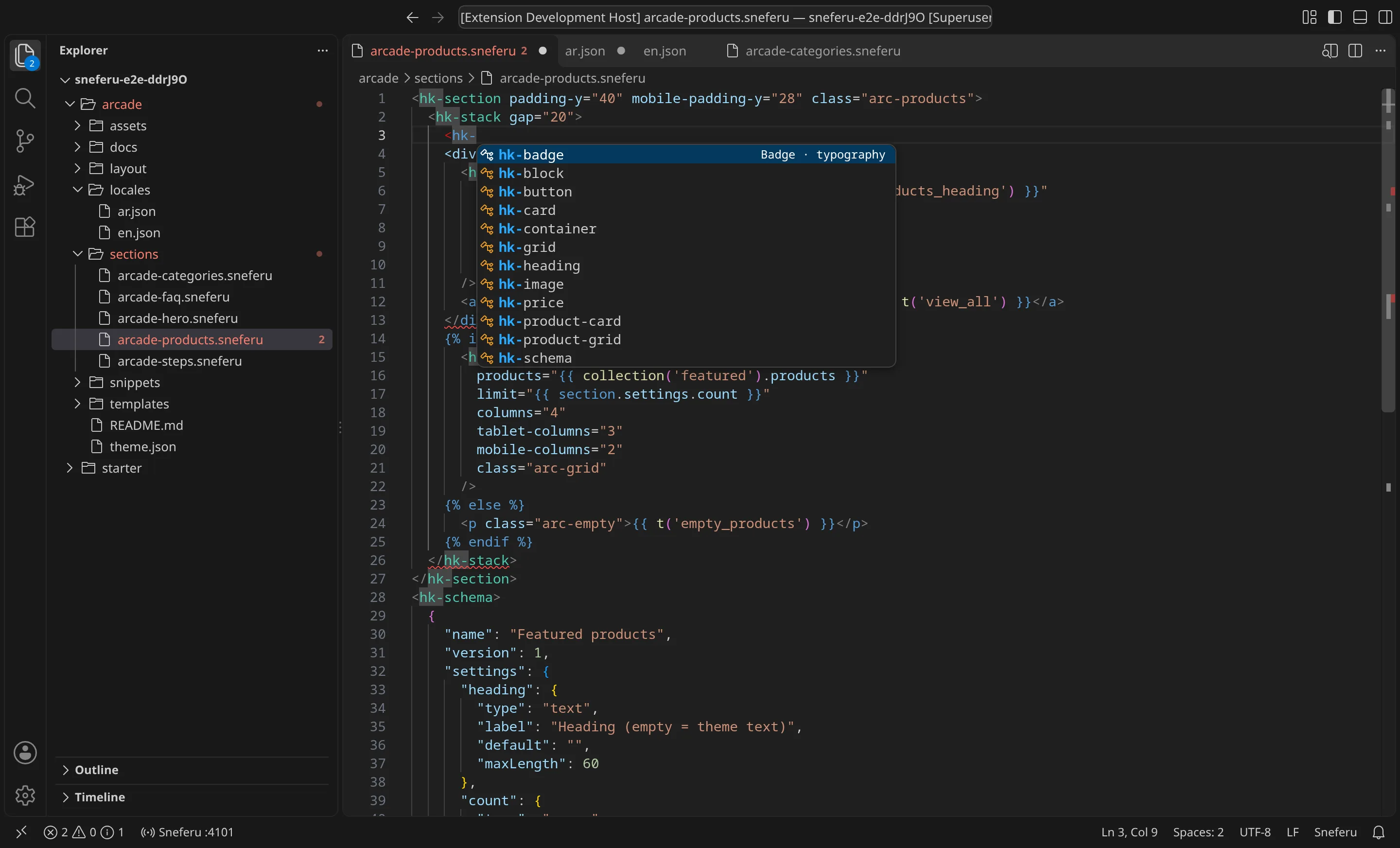

Completion and hover

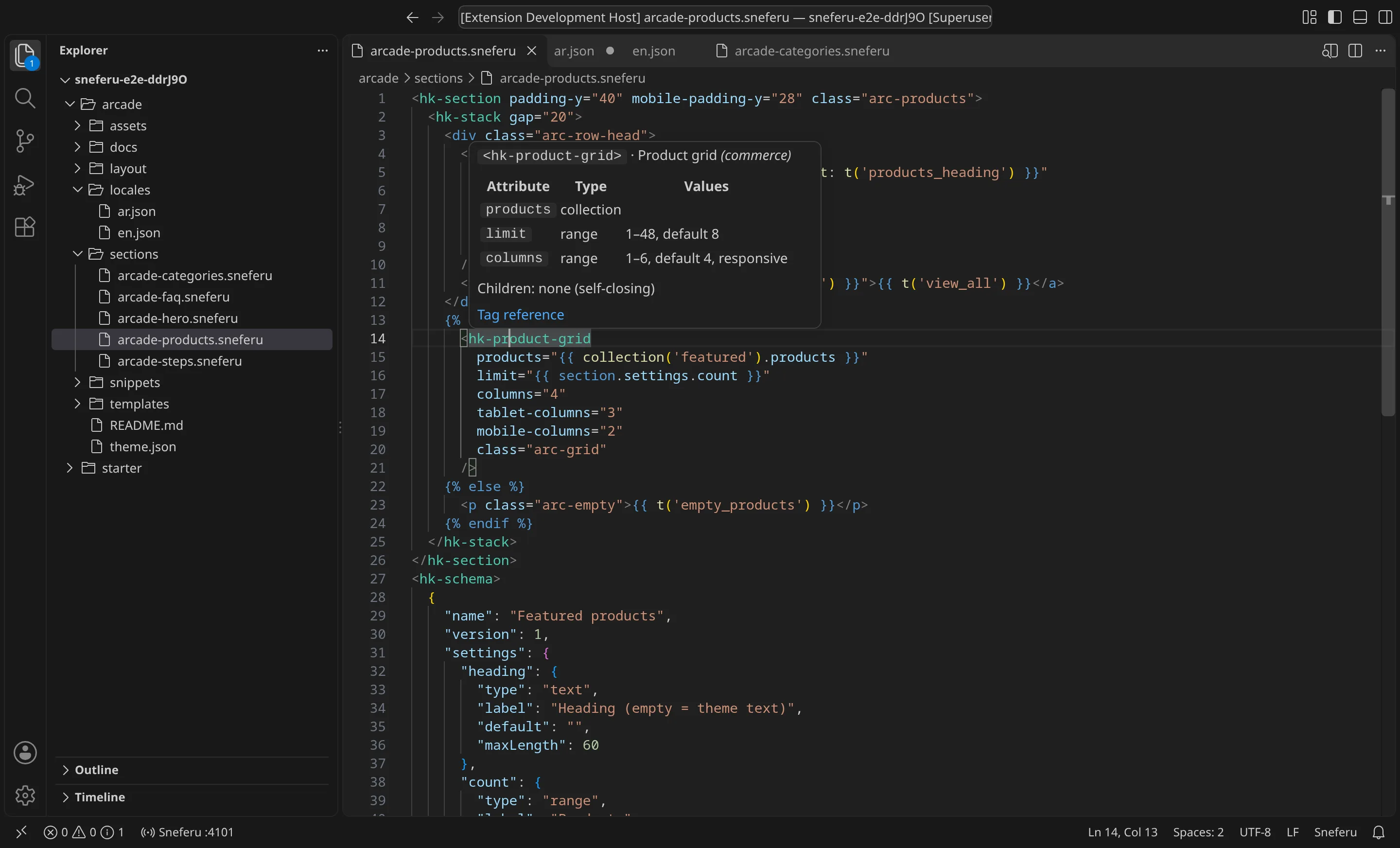

Hover shows the same reference: a tag's props with types, ranges and defaults; a filter or lookup; a setting's type, label and default; a translation key's text in every locale.

The tags, filters and lookups come from the SDK when the extension is built (docs/reference/tags.json and the language reference), so each release of the extension matches an SDK release.

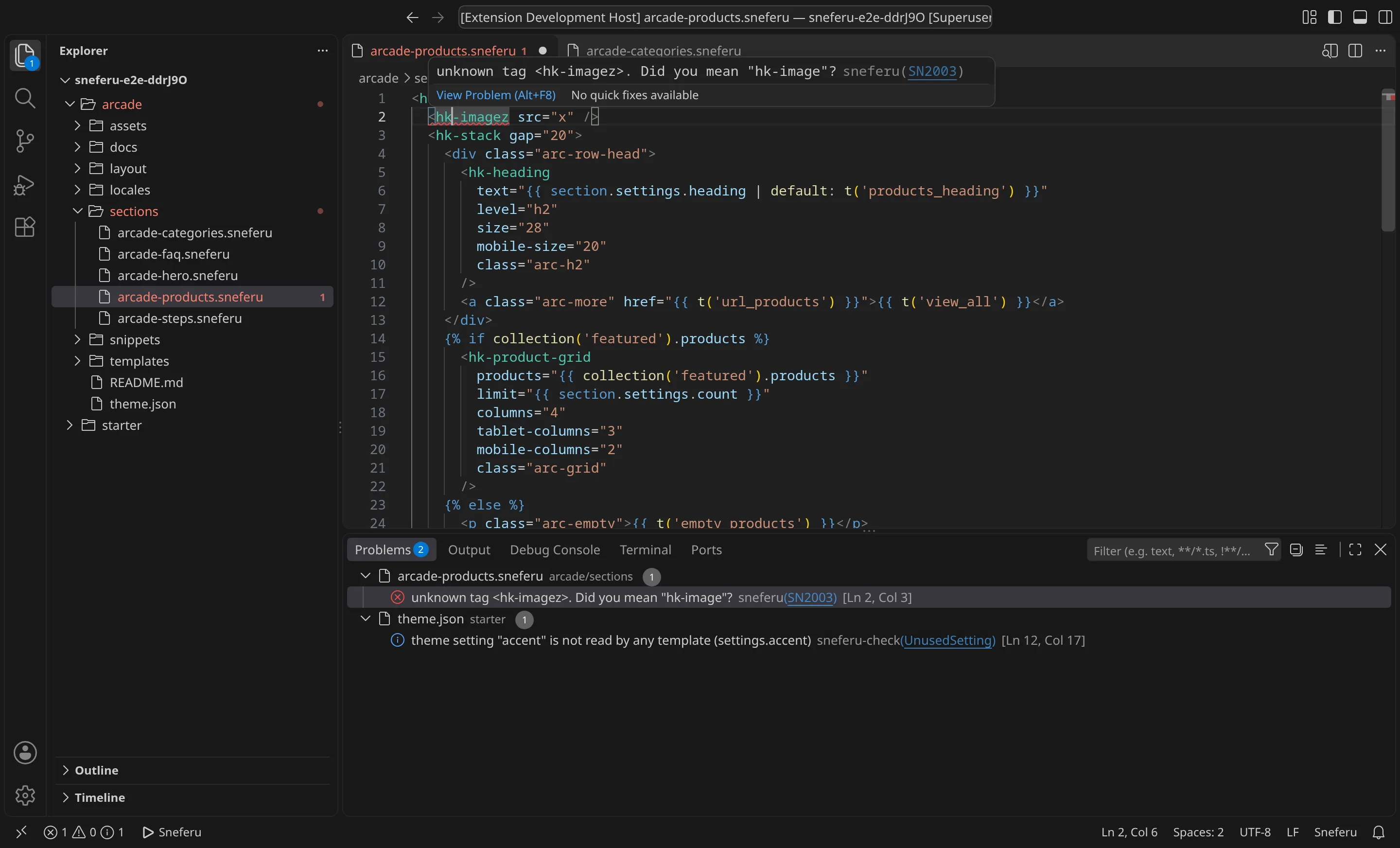

Diagnostics

The extension runs the same compiler as sneferu validate on the whole theme, including files you have not saved, about a quarter of a second after you stop typing. Problems appear in the editor and in the Problems panel with their SN code; click the code to open its entry in Diagnostics. theme.json also gets completion and checks from a JSON schema.

Theme checks

Next to the compiler, the extension flags problems that compile but would be caught in review. Each has a name, shown as its code. Turn one off with "sneferu.checks.disabled": ["OrphanedSnippet"], or all of them with "sneferu.checks.enable": false.

UnusedSetting

A setting in a section or block <hk-schema> that the file never reads as section.settings.<key> (or block.settings.<key>), or a theme.json setting no template reads as settings.<key>. The merchant would edit a field that changes nothing. Remove it or use it.

UndefinedSetting

section.settings.<key> in a section whose schema does not declare <key>. It is always empty. Usually a typo.

TranslationKeyExists

t('key') or 'key' | t where the default locale file has no key. The page shows the key itself. The quick fix adds the key to every locale file, with the key as its text, for you to translate.

MatchingTranslations

A key in locales/en.json that locales/ar.json does not have, or the other way round. The quick fix copies the key and its text into the other file, for you to translate.

MissingLocaleFile

theme.json lists a locale in locales that has no locales/<code>.json.

ImgAltText

<hk-image> or <img> without an alt attribute. Describe the picture, or write alt="" for a decorative one. The quick fix adds alt="".

SchemaLabelEnglish

A schema name or setting label with no English text: a string in Arabic only, or { "ar": "…" } without en. The theme editor shows en to English-speaking merchants. Write { "en": "…", "ar": "…" }.

AssetSize

An asset over 500 KB (sneferu.checks.assetSizeWarnKb). The compiler rejects assets over 2 MB (SN3007); this warns well before that.

MissingAsset

asset_url('file') where assets/file does not exist.

OrphanedSnippet

A snippet that no file renders with {% render %}. Shown as a hint.

Navigation

Ctrl+click (Cmd+click on macOS), or F12, on:

• {% render 'name' %}: opens snippets/name.sneferu
• a translation key: its line in each locale file
• section.settings.<key> or settings.<key>: the setting in the schema or theme.json
• a section "type" in a template's <hk-schema>: the section file
• asset_url('file'): the asset

Formatting

Format Document (Shift+Alt+F, Shift+Option+F on macOS) uses Prettier and @hekana/prettier-plugin-sneferu, with the theme's .prettierrc or .prettierrc.json if it has one, so the result is the same as sneferu format. As with the CLI, a change that would alter what the compiler makes of the file is refused. To format on save, add to .vscode/settings.json:

{
  "[sneferu]": {
    "editor.formatOnSave": true
  }
}

Sneferu: Format Theme formats every file of the theme at once.

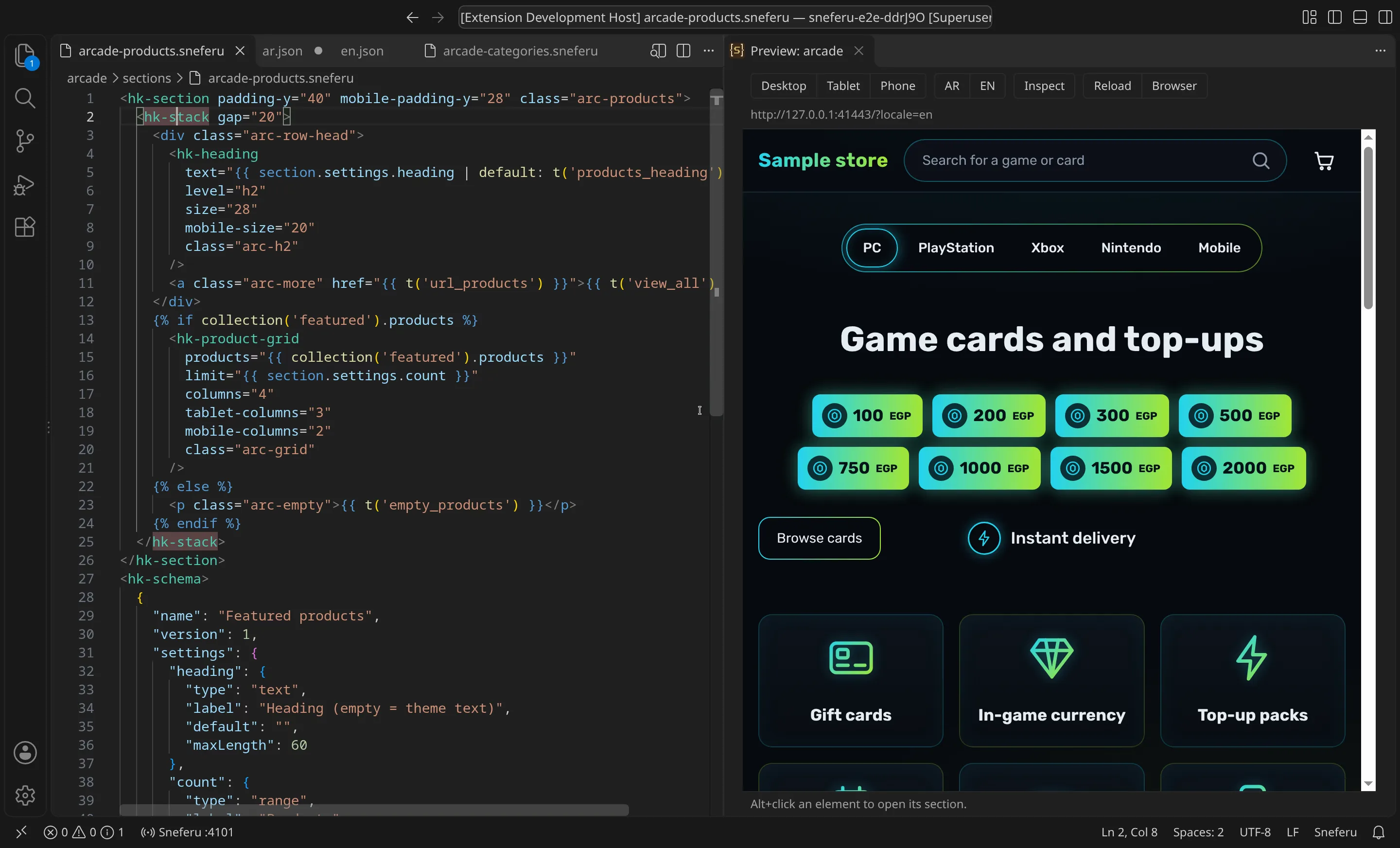

Live preview

Sneferu: Open Preview (Ctrl+Shift+P, then type it), or the preview button at the top right of a .sneferu editor, starts sneferu dev for the theme and opens the preview beside the editor.

• Desktop, Tablet (820 px) and Phone (390 px) set the width.
• AR and EN switch the language, for themes that ship both.
• A drop-down picks the template when the theme has more than index.
• The preview reloads when you save a theme file.
• Inspect, then click a section in the preview, opens that section's file. Alt+click does the same without turning Inspect on.
• Browser opens the same page in your browser.

The status bar shows the dev server and its port; click it, or run Sneferu: Stop Dev Server, to stop it. The preview uses the theme's sample data, .sneferu-dev/data.json, or the file set in sneferu.preview.dataFile (see Getting started).

Commands

Push uses the theme's id from theme.json as the package and the key saved by Log In, or HEKANA_TOKEN. See Push and publish.

Settings

The extension runs the CLI with VS Code's own Node.js and no shell, so it needs nothing else installed on Windows, macOS or Linux. Over Remote SSH, WSL or Dev Containers it runs on the remote side and VS Code forwards the preview's port.
